Step Lifts
A compact, reliable Step lifts designed to provide smooth, barrier-free access. Ideal for homes and commercial spaces, offering safe mobility across small height differences.
Step Lifts From Team Mobility
Compact, Multi-talented and Easy to Retrofit
With the reliable PicoPorte and Step lifts, you have flexible application options. Thanks to their compact design, they can be optimally used even in confined spaces. The convenient operation and safe performance ensure unrestricted mobility – both indoors and outdoors.

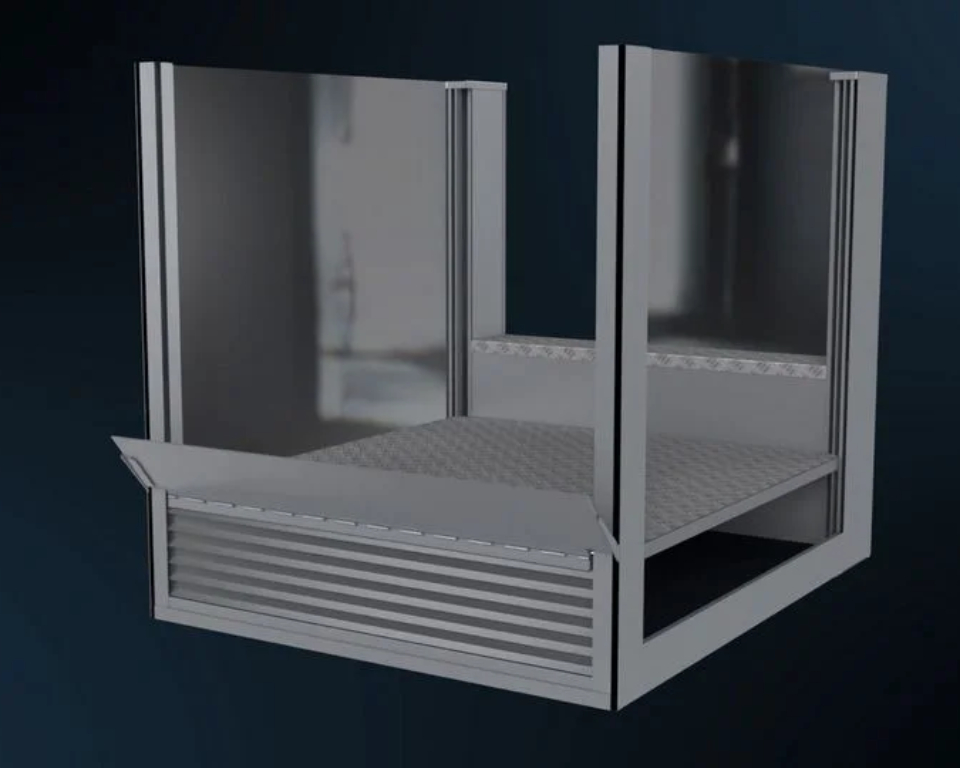

The PicoPorte lift from Team Mobility for greater accessibility
The PicoPorte from Team Mobility combines functionality, safety and elegant design – ideal for height differences of up to 1 metre. Perfect for private and public buildings, indoors and outdoors. Whether for wheelchair users, people with limited mobility or simply as a convenient way to bridge steps, the PicoPorte impresses with its fast travel speed, simple operation and slim design that blends harmoniously into any environment.
Fast travel – shorter waiting times thanks to an efficient drive system
Affordable lifting platform – high quality at an attractive price
Lifting height up to 1 metre – Ideal for steps, platforms or small differences in height
Weatherproof design – Suitable for indoor and outdoor use
Easy to retrofit – Minimal space requirement, uncomplicated installation
Easy to operate – Intuitive controls
Fast travel – Up to three times faster than conventional platforms
Load capacity – Load capacity up to 300 kg

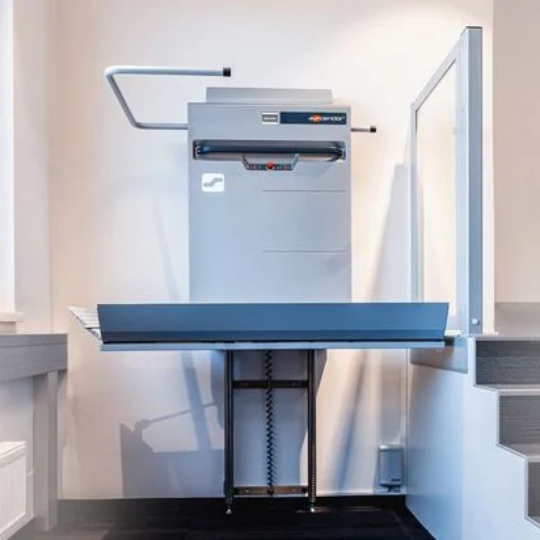

Impressive technology and design
The Team Mobility platform lift can easily overcome height differences of up to 1.4 metres. This provides a convenient solution for typical stair situations in entrance areas, foyers or even on ramps, platforms, etc. With a high load capacity of up to 225 kg, it is also suitable for transporting loads.
Space-saving – total depth of only 34 cm when wall-mounted
Smart – integrated colour display with a wide range of settings
Resilient – load capacity up to 225 kg
Product Features
| Lifting height | up to 1.4 m |
| Payload | up to 300 kg |
| Speed | up to 9 m/min |
| Colour | standard RAL 9006 |
| Stops | 2 |
| Installation location | indoors and outdoors |

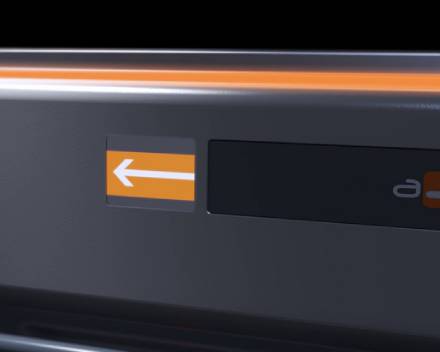

Self-explanatory Error Display
In the event of a fault, a colour display provides information about the cause and possible remedies. This way 80% of all maintenance cases can be avoided. The display also provides information about the current operating status at a glance.
Individual Design
With freely adjustable LEDs and individual prints on the bottom of the platform, Team Mobility ensures that your individual design gets printed to the lift!

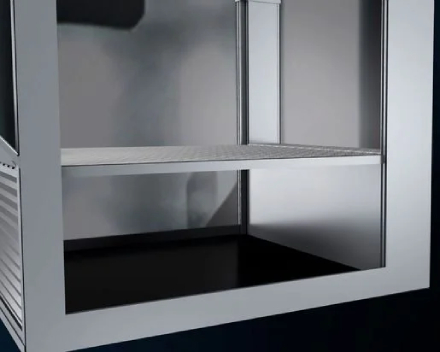

Fast Travel
Noticeably faster and smoother than conventional lifting platforms – for maximum comfort. Thanks to its innovative chain drive, the PicoPorte lifting platform moves up to three times faster than conventional lifting platforms.
Customised Design
With custom colours and personalised motifs on the platform or glass, the lift reflects every favourite motif as a visual highlight!
High-Quality Materials
With an emergency call via the GSM voice connection, the user can request assistance via two-way voice communication in case of need.
Remote Operating Status Query
Your Team Mobility technician can check the status of your lift within seconds if necessary and provide valuable advice remotely.
Sleek Design
Minimalist construction that blends harmoniously into modern and historic environments.

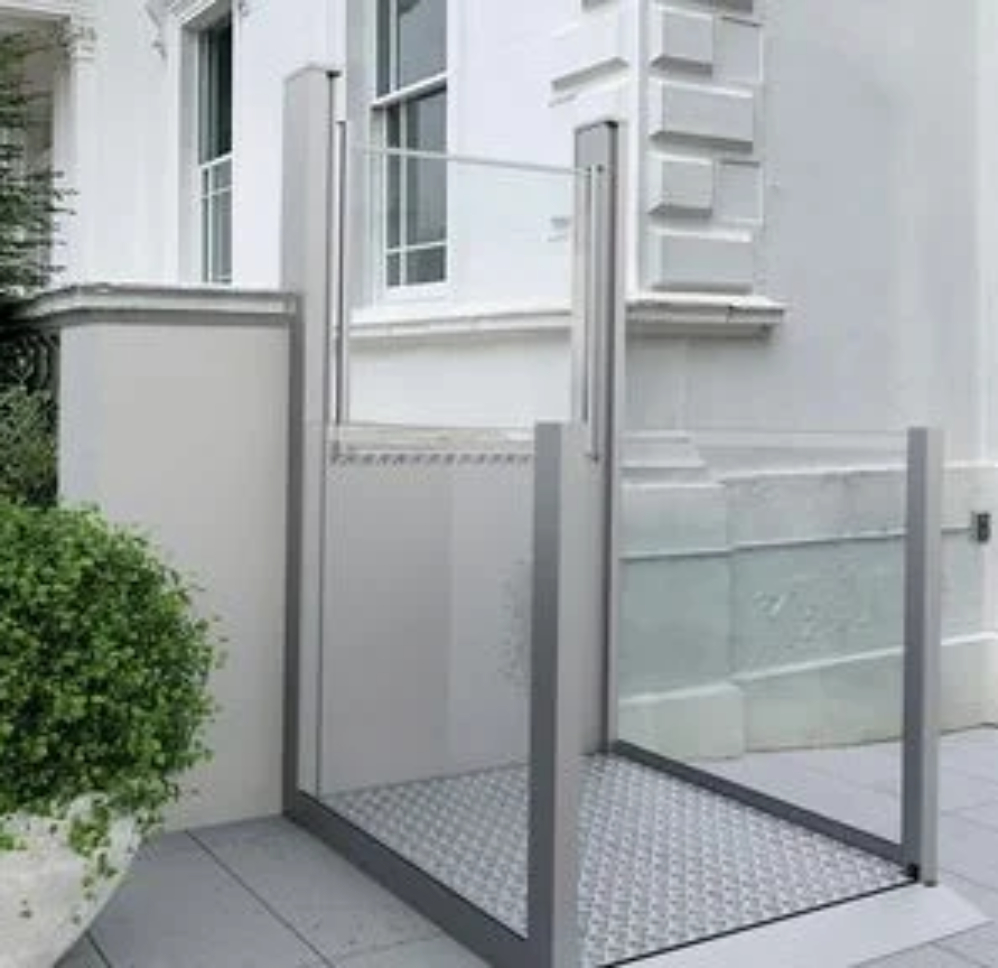

PicoPorte exterior with optional door in the upper section
Step lift platform with thermal door
PicoPorte (Kopie 1)
Technical specifications
0.3 - 1 m lifting height
300 kg load capacity
2 stops
Travel speed max. 4.2 m/min (0.07 m/sec)
1050 mm passage width (without door)
For indoor and outdoor use
PLV9 (Kopie 1)
Technical details
1.4 m lifting height
225 kg load capacity
2 stops
Travel speed up to 9 m/min
Sound level below 63 dB
For indoor and outdoor use
Control and operation
Mobile handheld transmitter
Wireless wall switch for outdoor call points
App control
Operation
Spiral cable remote control or
App for Android smartphones via Bluetooth receiver in the lift or
2 portable radio remote controls or
2 lockable, fixed wall-mounted remote controls (e.g. for public buildings)
Control functions: Open or close platform, move up or down
Drive
Innovative chain drive
24-volt DC drive
Connection: 100-240V, 50/60 Hz, Schuko socket
Drive
Reliable and maintenance-free rack and pinion gear
24 volt DC with 4 integrated, maintenance-free batteries
Automatically charged using a charger
Color/Materials
Anodized, non-slip aluminum tear plate
Side glass panels
Anodized aluminum (silver)
Color/Materials
Sturdy steel/aluminium lightweight construction
Load-bearing components made of electro-galvanised steel
Cladding made of robust, scratch-resistant, UV-resistant ABS plastic
Standard lift colour: silver metallic (similar to RAL 9006)
On request*: all RAL colours
Technology
Integrated error memory
Numerous setting options
Battery protection function
Space requirements (for wall mounting)
Closed 340 mm
Open 1055 mm
Space requirement
1580 x 1193 mm (LxW)
Standard platform sizes in millimetres
1250 x 800
1000 x 800
900 x 800
800 x 800
Platform
1200 x 1100 mm (LxW)
Low ramp height (approx. 6 cm)
Platform sizes in mm on request* (Kopie 1)
800 x 760, 800 x 710, 800 x 650, 900 x 760,
1000 x 900, 1000 x 760, 1000 x 710
1210 x 830, 1300 x 800 *at an additional cost

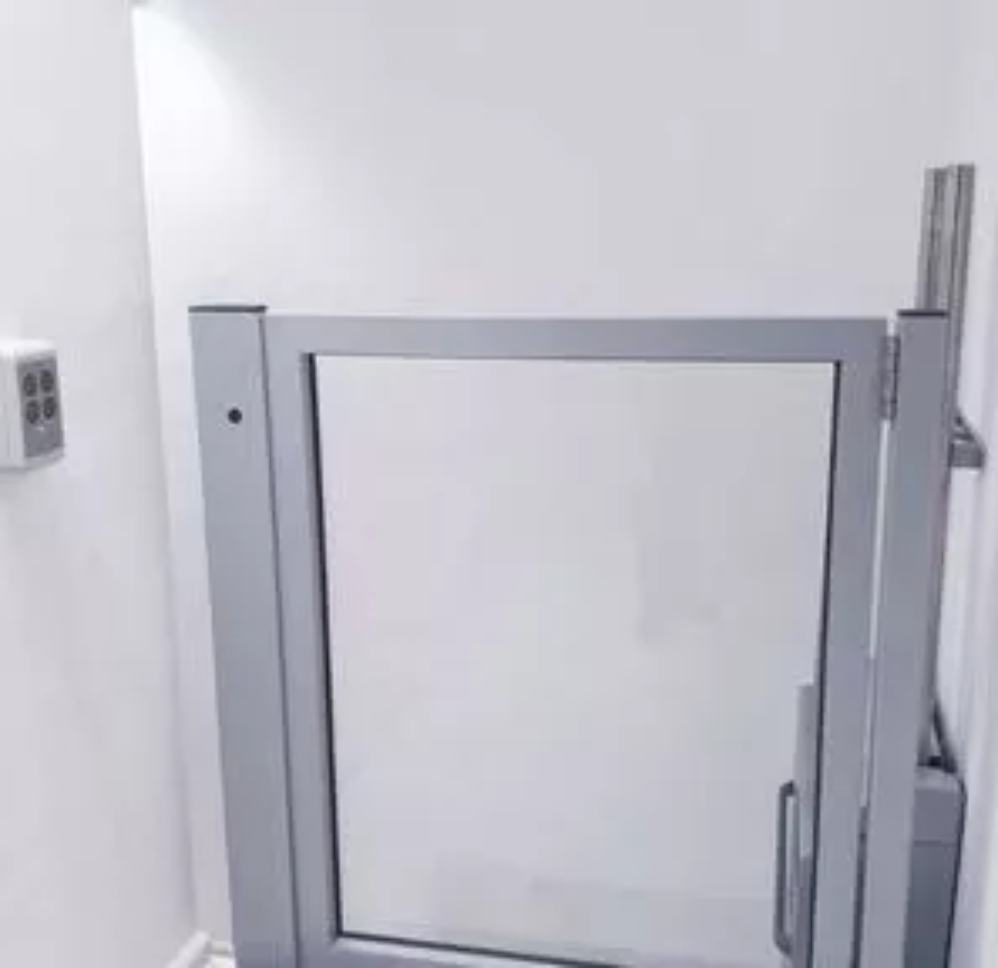

Door (optional)
Half-height door in upper stop
Door drive (optional)
930 mm passage width
Guide rail
Two stainless steel tubes with welded-on rack
Installation
Easy retrofitting
No pit required due to flexible access ramp
Fall protection at upper stop
Revolving door made of steel tubing construction, galvanised and powder-coated
Laminated safety glass, electromechanically locked
Options
RGB lighting
Display
Mounting column for wall switch
Voice output
SMS remote query
High guardrail (fall protection)
Basic equipment
Silver metallic design
Automatic control of barriers and floor flaps
Sensor buttons
Soft start and soft stop
Emergency call button
Emergency stop switch
Battery drive with 4 batteries and charger
Handrail
Non-slip studs
Door for the upper stop
Half-height door integrated into the lifting column
Facade door available in thermally insulated, moderately thermally insulated and non-thermally insulated versions
Various external dimensions
Different colour designs
Safety
CE marking
